Liquid Instruments' test equipment with Instrument-on-Chip technology delivers a unique combination of performance and versatility. We help students, scientists, and engineers learn, discover, and create.
Moku products harness the processing power and reconfigurability of an FPGA so you can deploy the instruments you need in an instant. Our seamless integration of hardware and software delivers exceptional versatility across a wide range of applications.
Analog Inputs
Two 12-bit, 125 MSa/s input channels
30 MHz analog bandwidth
AC or DC coupling with 1 MOhm impedance
Input range up to +-25 V
Analog Outputs
Two 12-bit, 125 MSa/s output channels
20 MHz analog bandwidth
+-5 V maximum output range
Digital I/O
16-channel DIO at 125 MSa/s
Available Instruments
Arbitrary Waveform Generator
Data Logger
Digital Filter Box
FIR Filter Builder
Frequency Response Analyzer
Lock-in Amplifier
Logic Analyzer / Pattern Generator
Oscilloscope / Voltmeter
PID Controller
Spectrum Analyzer
Waveform Generator
Get more information

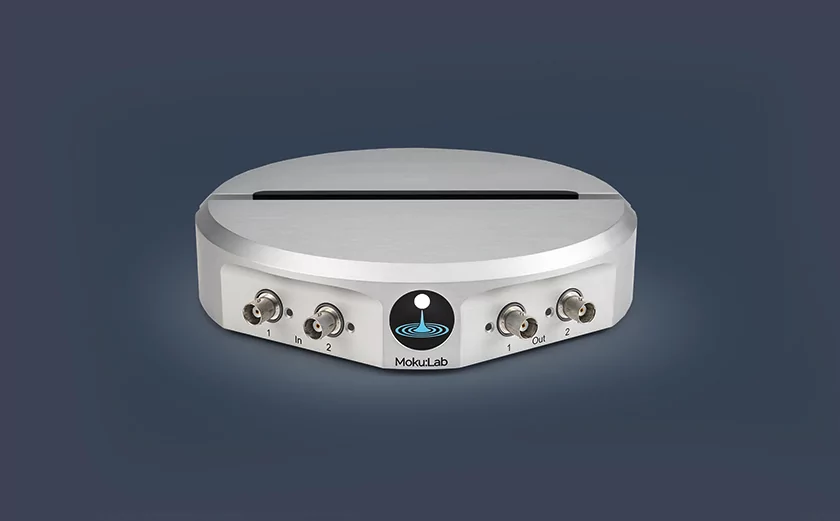

Analog Inputs
Two 12-bit, 500 MSa/s input channels
200 MHz analog bandwidth
AC or DC coupling with 50 Ohm/1 MOhm switchable impedance
Input range +-5 V
Analog Outputs
Two 16-bit, 1 GSa/s output channels
300 MHz analog bandwidth
+-1 V into 50 Ohm output range
Digital I/O
Dedicated TTL trigger port
Available Instruments
Arbitrary Waveform Generator
Data Logger
Digital Filter Box
FIR Filter Builder
Frequency Response Analyzer
Laser Lock Box
Lock-in Amplifier
Oscilloscope
Phasemeter
PID Controller
Spectrum Analyzer
Waveform Generator
Get more information

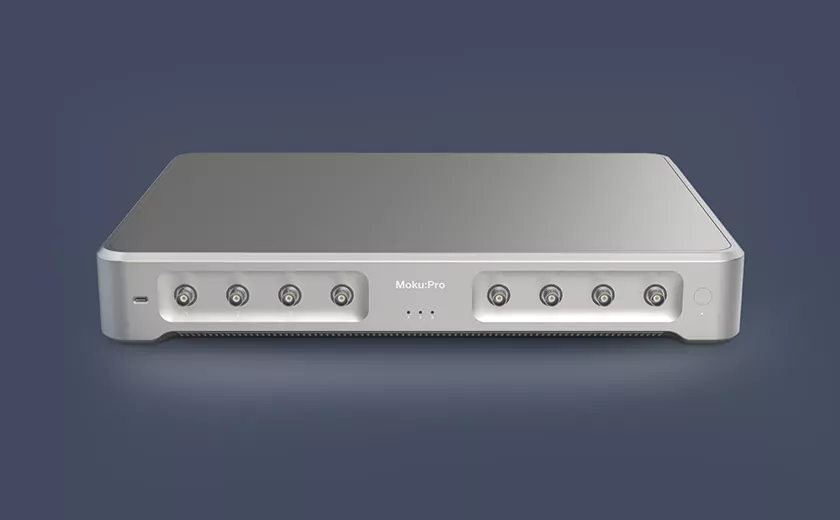

Analog Inputs
Four 10+18-bit, 5 GSa/s input channels
600 MHz analog bandwidth
AC or DC coupling with 50 Ohm/1 MOhm switchable impedance
Input range +-20 V
Analog Outputs
Four 16-bit, 1.25 GSa/s output channels
500 MHz analog bandwidth
+-5 V into 50 Ohm output range
Digital I/O
Dedicated TTL trigger port
Available Instruments
Arbitrary Waveform Generator
Data Logger
Digital Filter Box
Frequency Response Analyzer
Laser Lock Box
Lock-in Amplifier
Oscilloscope
Phasemeter
PID Controller
Spectrum Analyzer
Waveform Generator
Get more information
